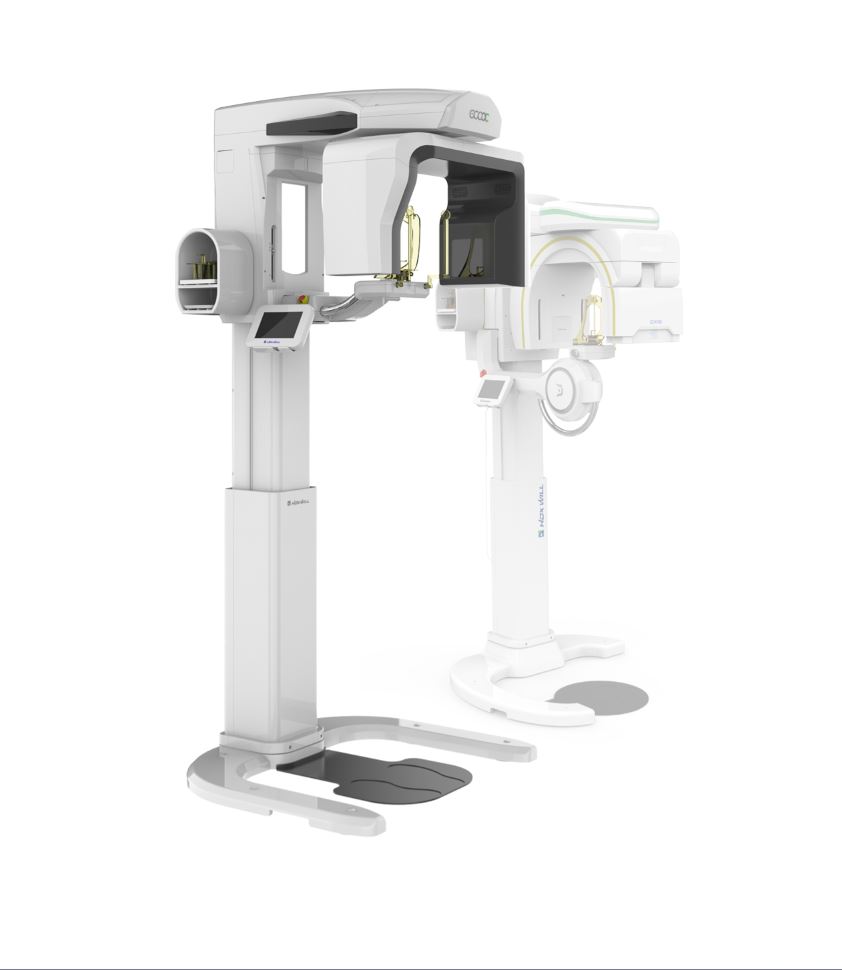

X-ray photograph Dentio specification

Tube voltage: 50-90 kV
Focal diameter: 0.5 mm
Gray scale: 16 bit
Detector type: TDI CCD
Tube current: 4mA-20mA
Scanning time: (Pano) 13.6 seconds
(Cephalo) 8.2 seconds
Patient’s position: standing
Dimensions: (WxDxH) 1953mm x 1222mm x 2309mm
(without Cephalo) 980mm x 1222mm x 2309mm (tolerance : ±5%)
Device weight: 160 kg or 130kg (without Cephalo)(tolerance : ±10%)
